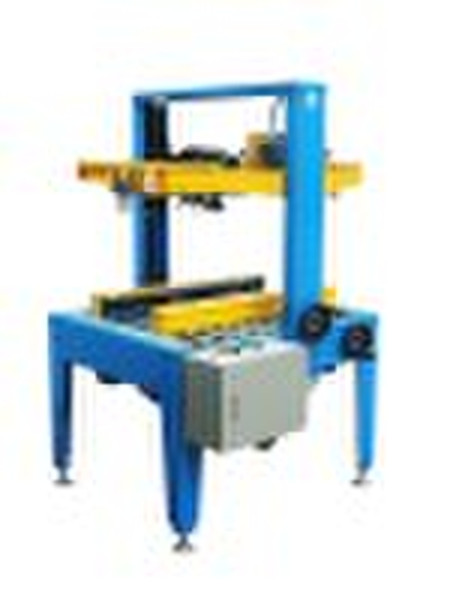

semi-automatic carton sealing machine

Type DH---T101S1 Conveyor speed 0-20m/min general: 30sets/min The max packing size L∞*W520*H520mm The min packing size L120*W150*H120mm The work bench height the general height is 750mm and the lowest is 400mm the machine operation alone is allowed , also can be used with the auto production line .the single adjustable height is ±100mm for selection) Supply power 380V/220V 50-60Hz 350W Suitable adhesive tapeW30mm----60mm Machine size L1100*W900*H1700mm Machine weight 160Kg Remark: the above parameter can be adjusted as per the carton actual size Technical specification this is a Energy saving type automatic carton sealing machine , usually use together with the automatic production line. The machine automatic open the carton box by pneumatic equipment , electrical and pneumatic parts adopted the Schneider brand. and this machine is most suitable for the carton which has a big difference in length and width According to the carton size ,the machine can adjust the height and the width manually . and can fold the carton box automatically ,driven by the upper and lower belt,and sealing the carton box automatically, the sealing effect is so perfect. The whole machine surface with powder painting .the color can be choose by the customer. Equipped with safety indication and the safety protection unit
